Minilec F3 BPC1 | ( 3 PUMP )

EGP83.00

In stock

SKU: F3 BPC1 Categories: ,

Automation Products

F3 BPC1 | ( 3 PUMP ) Pump Controller Relay for 2 Pumps (9 I/P, 3+1 O/P, Aux.Supply 90-270 V AC)”

  • ParameterF3 BPC1F5 BPC1
  • Auxiliary Supply Voltage90-270 V AC / DC90-270 V AC / DC
  • Inputs (Potential free)
    • Pressure Switch Contacts35
    • Trip Contacts35
    • Water Level Inputs (4 Electrodes)HLL, LL & RSTHLL, LL & RST
    • Auto / Manual SelectionBy Front KeysBy Front Keys
    • Alarm MuteBy Front KeysBy Front Keys
    • Relay Outputs
      • Pump35
      • Alarm11
    • Serial Port Output (Optional)

      RS 485Optinal

    • Weight 550 gms850 gms

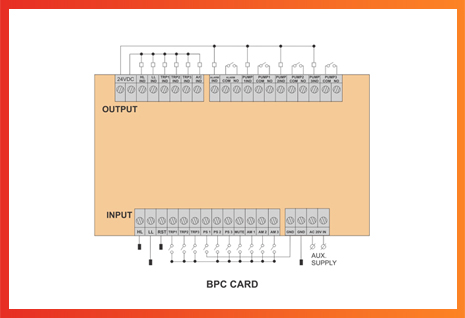

    • Input
      • 2, 3, 4,5 Pressure Switches
      • Over load relay contacts
      • Water Level Electrodes & Auto/Manual switches

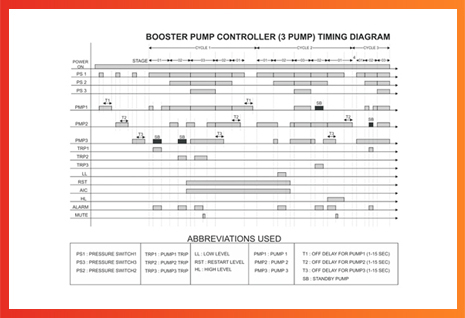

    • Operating Sequence
      • The key of the Booster Pumps is the Pressure Switches, which are preset according to the different pressure levels in the Pressure Tank. The water pressure in the Pressure Tank is to be maintained so that the consumers get constant pressure irrespective of the variations in the demand. As the user demand increases the respective Pressure switches activate & Booster Pumps are switched ON sequentially.
        *Pumps are switched off Sequentially as per decrease in demand. Role of Stand-by pump is rotated in each next cycle to ensure equal running of all pumps.
